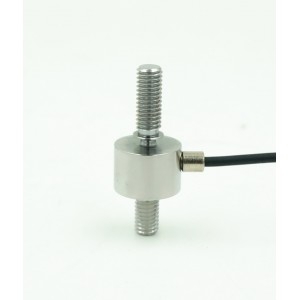

Brans’s miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 301 series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 50kg or 10 N up to 50,0N, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
Features
Miniature sizes ranging from 13 mm to 51mm in diameter and from 24mm to 39mm height
Load range measurements: 1kgs to 100kgs; 10 N to 1000N;
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
Data Sheet:
| Number | Specifications | Technique |
| 1 | Capacity | 10,30,50,100,200,500,1000N |
| 2 | Rated output | 1.0±10%mV/V |
| 3 | Zero balance | ±0.05 mV/V |
| 4 | Non‐linearity | 0.5%F.S. |
| 5 | Hysteresis | 0.2%F.S. |
| 6 | Repeatability | 0.2%F.S. |
| 7 | Creep(30min) | 0.1%F.S. |
| 8 | Temp.effect on output | 0.05%F.S./10ºC |
| 9 | Temp.effect on zero | 0.05%F.S./10ºC |
| 10 | Input impedance | 800~1100Ω |
| 11 | Output impedance | 800~1100Ω |
| 12 | Insulation | ≥5000MΩ/100VDC |
| 13 | Recommended excitation | 5~10V |
| 14 | Maximum excitation | 15V |
| 15 | Compensated temp range | ‐10~60ºC |
| 16 | Operation temp range | ‐20~80ºC |
| 17 | Safe overload | 150%F.S. |
| 18 | Ultimate overload | 200%F.S. |
| 19 | Cable size | φ2×4000mm |
| 20 | Weight approx. | 0.1kg |
| 21 | Material | Stainless Steel |
| 22 | IP Class | IP66 |
Brans’s miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 301 series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 50kg or 10 N up to 50,0N, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
Features
Miniature sizes ranging from 13 mm to 51mm in diameter and from 24mm to 39mm height
Load range measurements: 1kgs to 100kgs; 10 N to 1000N;
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
Data Sheet:
| Number | Specifications | Technique |
| 1 | Capacity | 10,30,50,100,200,500,1000N |
| 2 | Rated output | 1.0±10%mV/V |
| 3 | Zero balance | ±0.05 mV/V |
| 4 | Non‐linearity | 0.5%F.S. |
| 5 | Hysteresis | 0.2%F.S. |
| 6 | Repeatability | 0.2%F.S. |
| 7 | Creep(30min) | 0.1%F.S. |
| 8 | Temp.effect on output | 0.05%F.S./10ºC |
| 9 | Temp.effect on zero | 0.05%F.S./10ºC |
| 10 | Input impedance | 800~1100Ω |
| 11 | Output impedance | 800~1100Ω |
| 12 | Insulation | ≥5000MΩ/100VDC |
| 13 | Recommended excitation | 5~10V |
| 14 | Maximum excitation | 15V |
| 15 | Compensated temp range | ‐10~60ºC |
| 16 | Operation temp range | ‐20~80ºC |
| 17 | Safe overload | 150%F.S. |
| 18 | Ultimate overload | 200%F.S. |
| 19 | Cable size | φ2×4000mm |
| 20 | Weight approx. | 0.1kg |
| 21 | Material | Stainless Steel |
| 22 | IP Class | IP66 |
