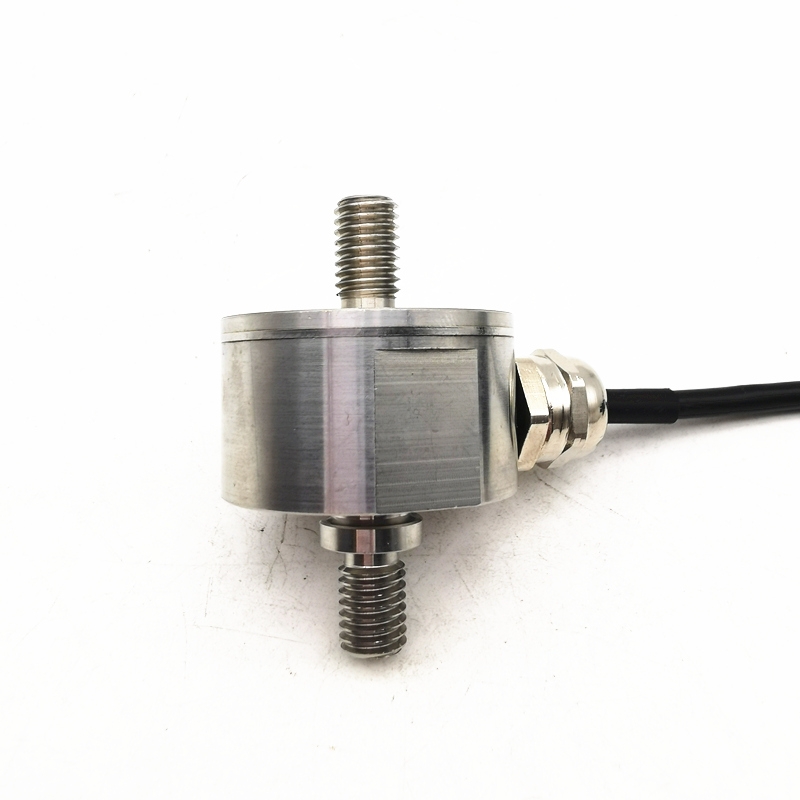

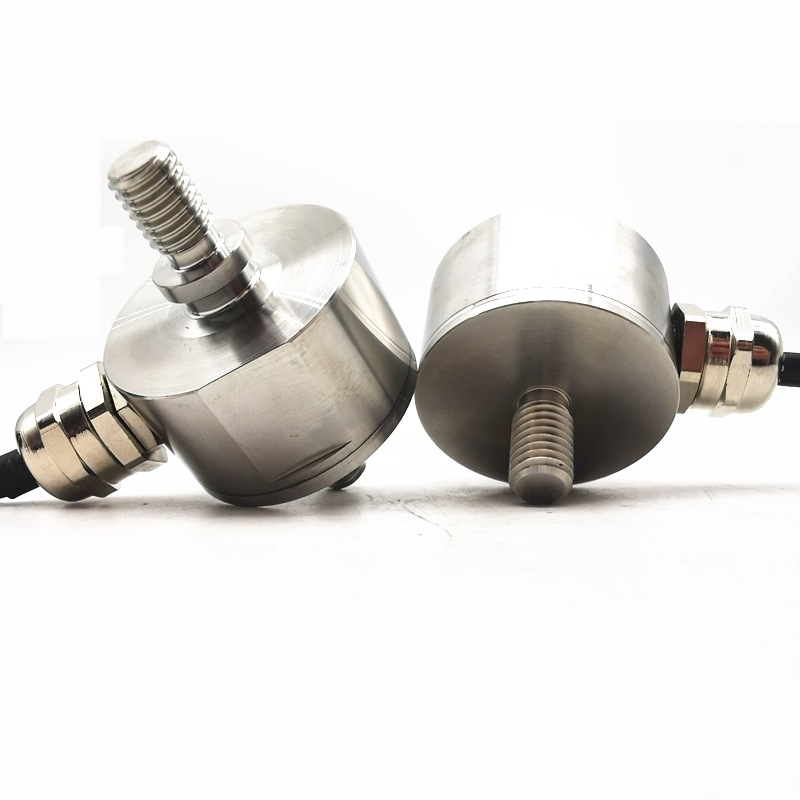

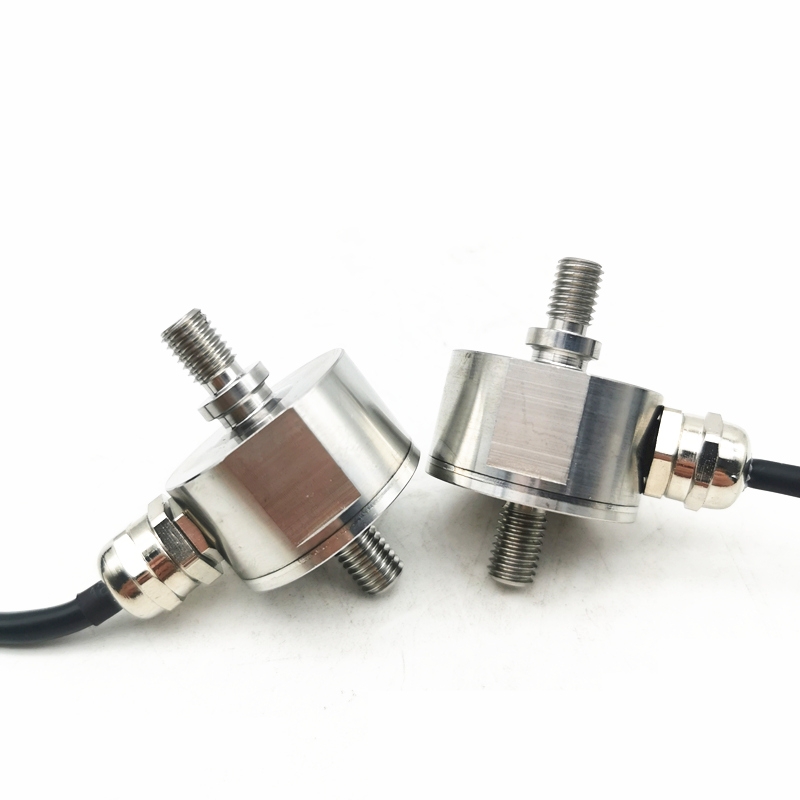

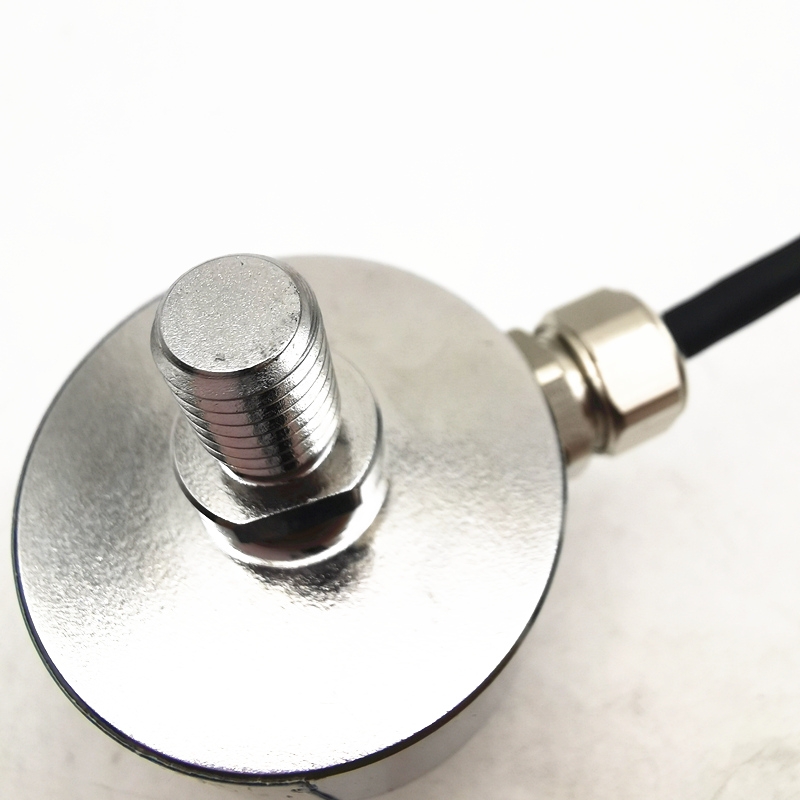

Brans load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 304 series are the miniature load cells designed to measure both tension and compression load forces from 50kgs to 500kg; 500 N to 5KN, with high accuracies of 0.2 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
Features

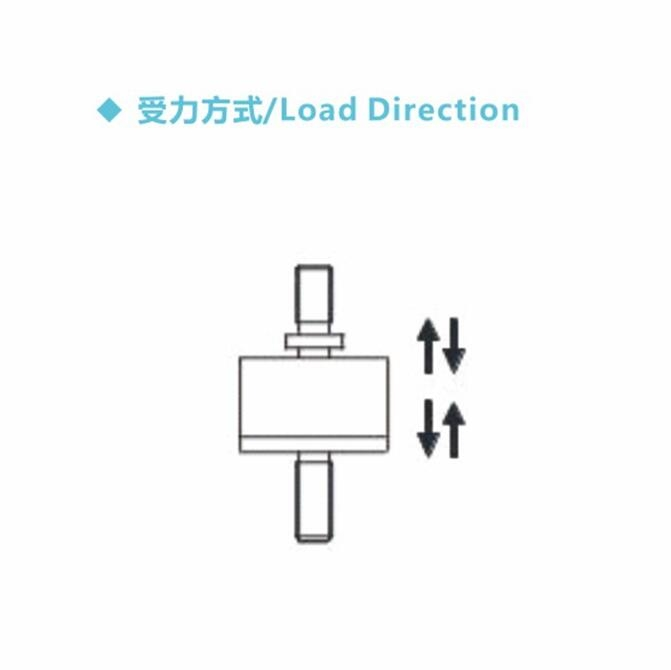

Tension compression force sensor

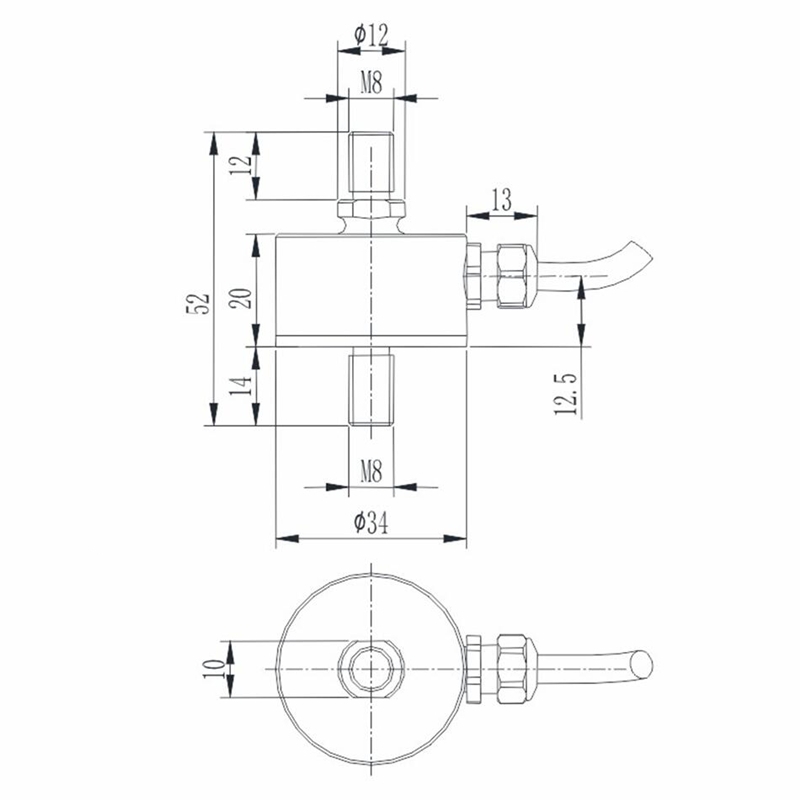

Miniature size as 34mm in diameter
Load range measurements: 50kgs to 500kg; 500 N to 5KN;
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.2 % full scale
