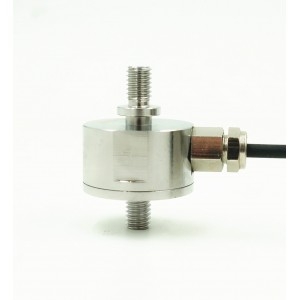

Brans’s miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 303 series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 50kg or 10 N up to 50,0N, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
Features
Tension compression force sensor
Miniature size as 25.4mm in diameter
Load range measurements: 1kgs to 200kg; 10 N to 2KN; or 2.2046 lb to 4409 lb
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
Brans’s miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 303 series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 50kg or 10 N up to 50,0N, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
Features
Tension compression force sensor
Miniature size as 25.4mm in diameter
Load range measurements: 1kgs to 200kg; 10 N to 2KN; or 2.2046 lb to 4409 lb
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
