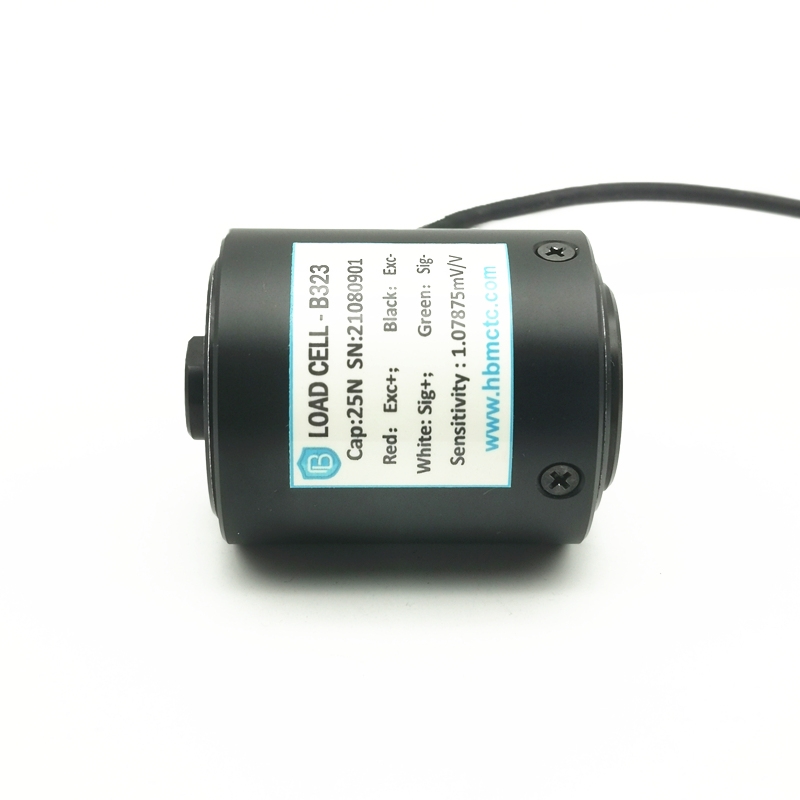

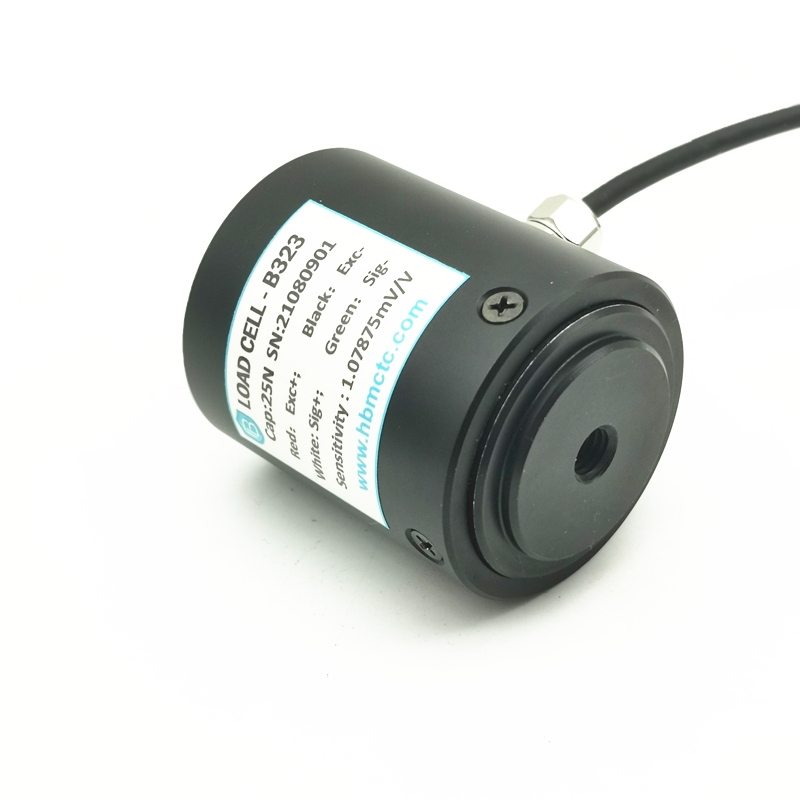

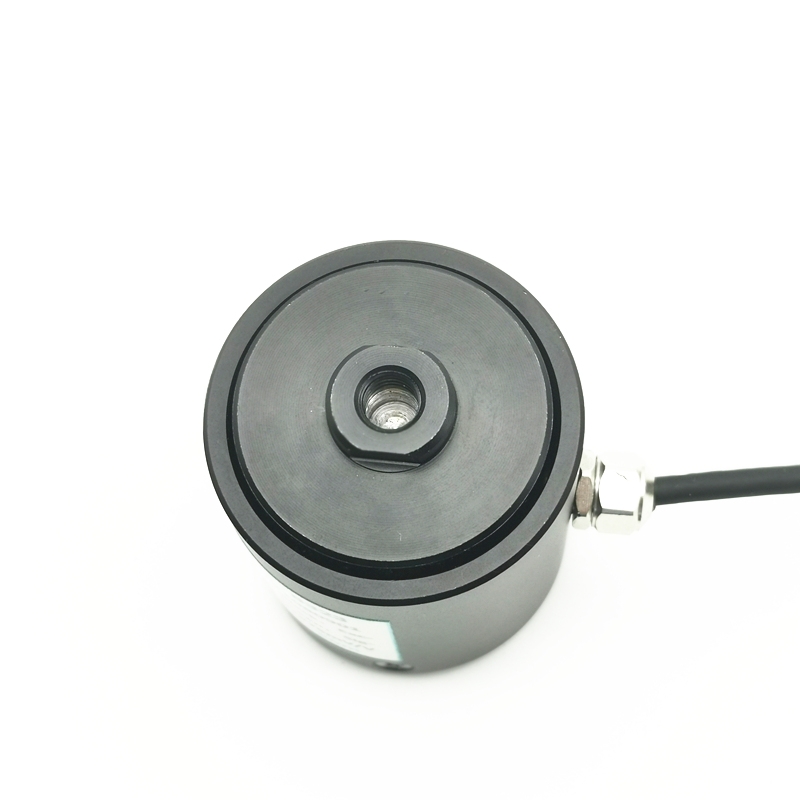

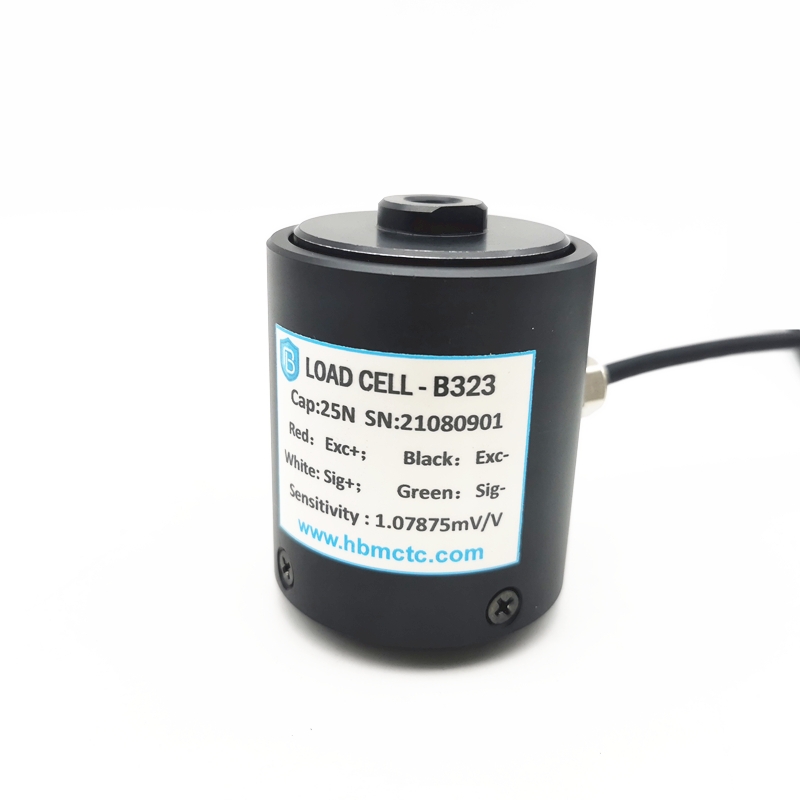

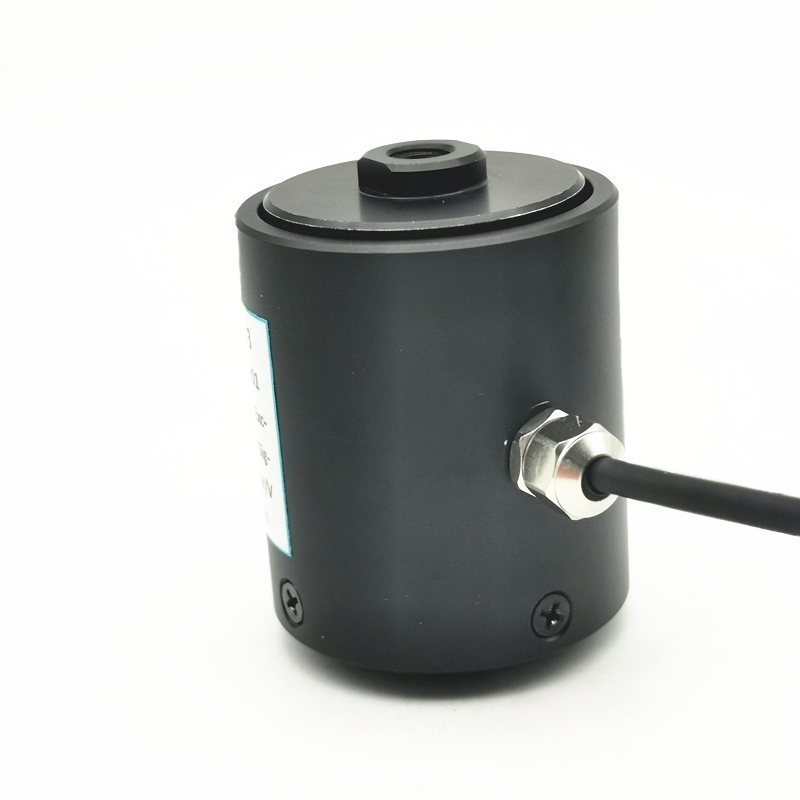

Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
  • Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
  • Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
  • Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
  • Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
  • Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
  • Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)
0 1 2 3 4 5

Mini Column Tension and Compression Weighing Force Transducer 5/10/20/50/100/200/500/1000/5000kg (B323)

  • Products details
  • Product Parameters
    1. Name: mini-column type compression and tension load cell

    2. Type: B317

      Capacity: 5/10/20/50/100/200/500/1000/5000kg

    3. Specifications:

      ● Miniature load cell,low profile,small deflection
      ● Made of stainless steel

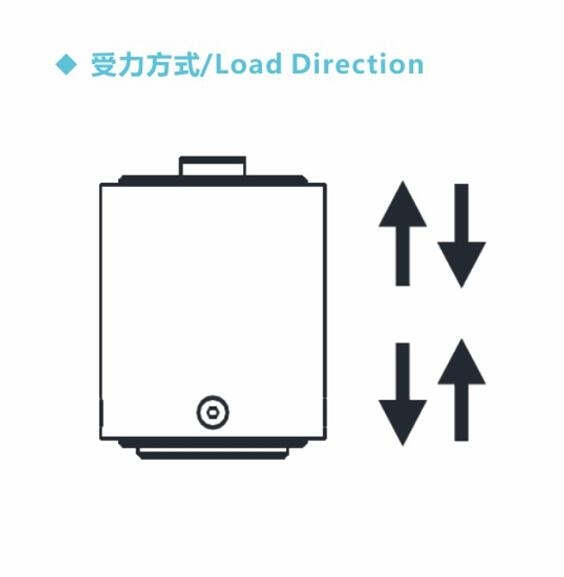

      ●Tension and compression application
      ●Mainlyusedforautomotivepress fit,automated assembly,3C products testing, new energy product assembly, medicaltesting,robotics, mold assembly and otherindustrial testing and control system
      ●High dynamic response frequency

    SpecificationsTechnique
    Capacity5/10/20/50/100/200/500/1000/2000/5000kg
    Rated output2.0±0.25%mV/V
    Zero balance±2% F.S.
    Non-linearity0.05%F.S.
    Hysteresis0.05%F.S.
    Repeatability0.05%F.S.
    Creep(30min)±0.05%F.S./10ºC
    Temp.effect on output0.05%F.S./10ºC
    Temp.effect on zero0.05%F.S./10ºC
    Input impedance385±10Ω
    Output impedance350±10Ω
    Insulation≥5000MΩ/100VDC
    Recommended excitation10V
    Maximum excitation15V
    Compensated temp range-10~40ºC
    Operation temp range-30~70ºC
    Safe overload150%F.S.
    Ultimate overload200%F.S.
    Cable sizeΦ3×4000mm
    MaterialStainless Steel
    IP ClassIP66



    1. Name: mini-column type compression and tension load cell

    2. Type: B317

      Capacity: 5/10/20/50/100/200/500/1000/5000kg

    3. Specifications:

      ● Miniature load cell,low profile,small deflection
      ● Made of stainless steel
      ●Tension and compression application
      ●Mainlyusedforautomotivepress fit,automated assembly,3C products testing, new energy product assembly, medicaltesting,robotics, mold assembly and otherindustrial testing and control system
      ●High dynamic response frequency

    SpecificationsTechnique
    Capacity5/10/20/50/100/200/500/1000/2000/5000kg
    Rated output2.0±0.25%mV/V
    Zero balance±2% F.S.
    Non-linearity0.05%F.S.
    Hysteresis0.05%F.S.
    Repeatability0.05%F.S.
    Creep(30min)±0.05%F.S./10ºC
    Temp.effect on output0.05%F.S./10ºC
    Temp.effect on zero0.05%F.S./10ºC
    Input impedance385±10Ω
    Output impedance350±10Ω
    Insulation≥5000MΩ/100VDC
    Recommended excitation10V
    Maximum excitation15V
    Compensated temp range-10~40ºC
    Operation temp range-30~70ºC
    Safe overload150%F.S.
    Ultimate overload200%F.S.
    Cable sizeΦ3×4000mm
    MaterialStainless Steel
    IP ClassIP66



  • Model:
    B323
    Brand:
    Brans
