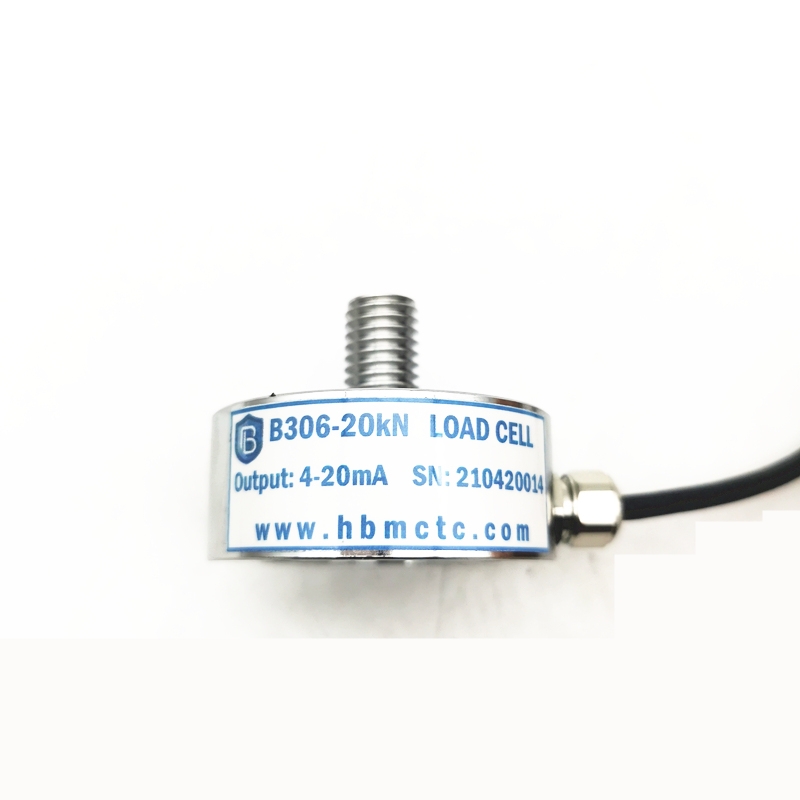

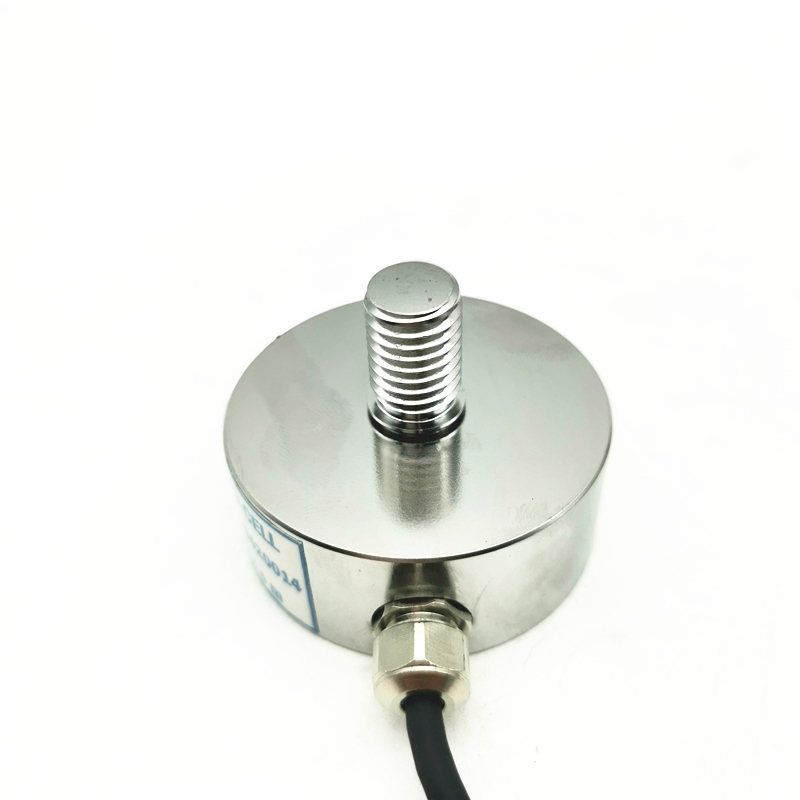

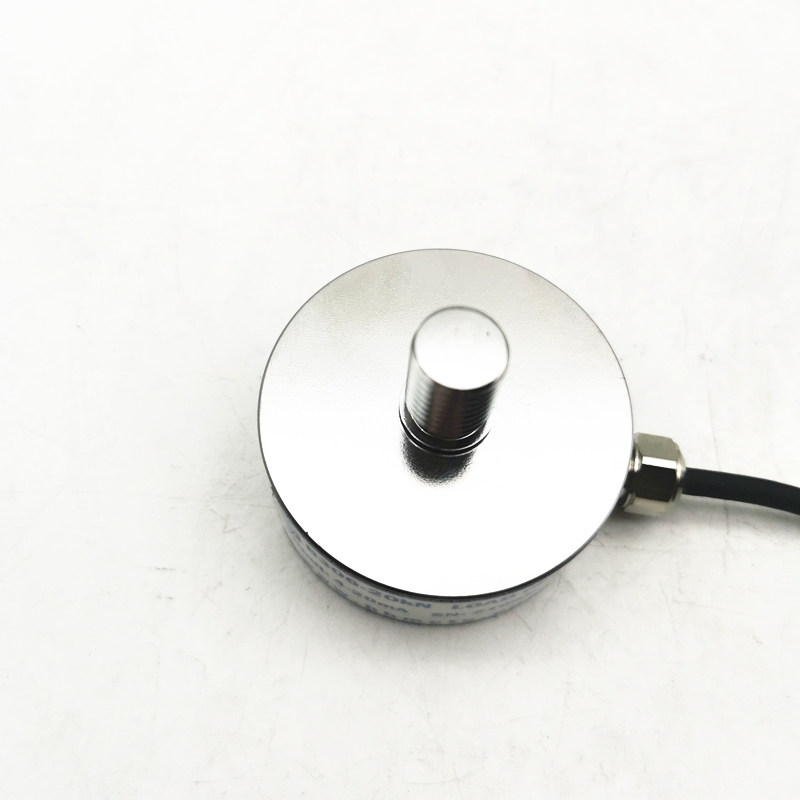

Brans's miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 306 series are the miniature load cells designed to measure both tension and compression load forces from 100kg up to 500kg or 1kN up to 100kN, with high accuracies of 0.2 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads.
Features

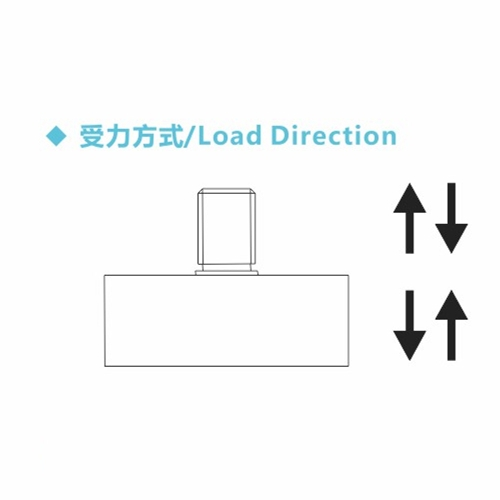

Tension compression force sensor

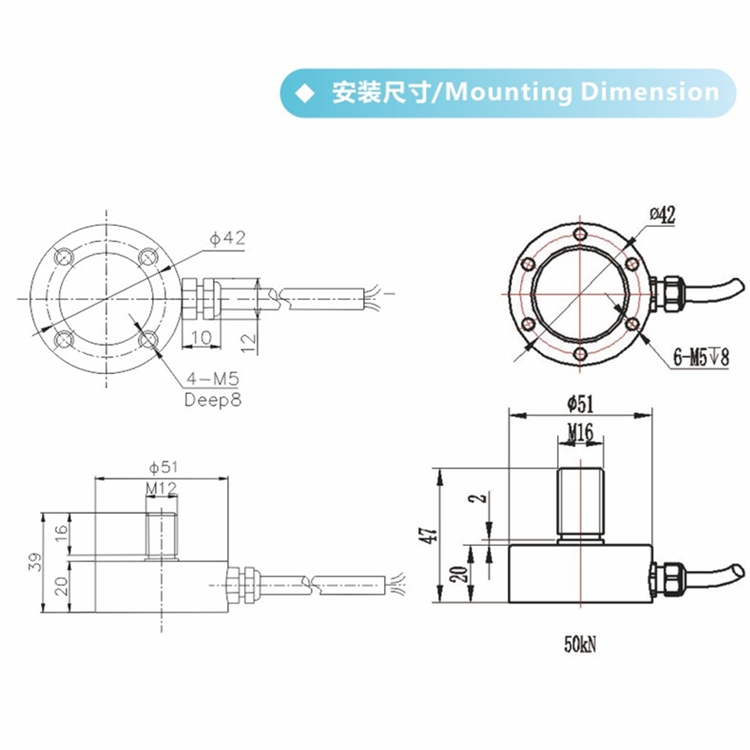

Miniature size as 34mm in diameter
Load range measurements: 1,2,5,10,20,50,100kn
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.2 % full scale
